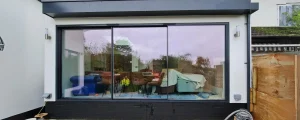

Cortizo COR Vision Sliding Doors: Everything You Need to Know

The Cortizo COR Vision are a premium sliding doors system for homeowners looking to combine modern design, functionality, and energy efficiency. These aluminium sliding doors are engineered to maximize natural light, provide seamless transitions between indoor and outdoor spaces, and offer durability, security, and customization. This guide explores every aspect of the Cortizo COR Vision sliding doors to help you make an informed decision for your home.

Key Features of Cortizo COR Vision Sliding Doors

Minimalist Design

• Ultra-Slim Interlock Profile: With a sightline of just 20 mm between panels, the Cortizo COR Vision doors create a near-frameless effect, maximizing glass visibility and natural light. This minimalist design enhances the aesthetic appeal of modern homes.
• High Glass-to-Frame Ratio: Over 90% of the aperture is glass, providing an unobstructed view and a seamless transition between indoor and outdoor spaces. This feature is ideal for homes with scenic views or those looking to create an open, airy feel.
• Frameless Effect: The bottom, top, and side frames can be embedded within the wall, further enhancing the minimalist aesthetic and creating a clean, modern look.

Energy Efficiency and Insulation

• Thermal Performance: The doors offer excellent thermal insulation with a U-value starting from 1.3 W/m²K, ensuring energy efficiency and comfort in all seasons. This helps reduce heating and cooling costs.
• Acoustic Insulation: With a maximum Rw value of 41 dB, the COR Vision sliding doors reduce external noise, making them ideal for homes in noisy areas or near busy streets.
• Glazing Options: Supports glazing units up to 30 mm thick, enhancing insulation and soundproofing. Double-glazed toughened safety glass is used for durability and security.

Durability and Weather Resistance

• Weather-Resistant Design: The doors achieve a water tightness class of 7A and a wind resistance class of C5, ensuring long-term performance in harsh weather conditions. This makes them suitable for coastal or storm-prone areas.
• Integrated Drainage System: Prevents water accumulation, protecting the doors from damage and wear over time. This feature ensures the doors remain functional and visually appealing for years.

Security Features

• Multi-Point Locking System: The doors are equipped with a secure 5-point locking mechanism, providing enhanced safety and peace of mind. This system makes it difficult for intruders to force the doors open.
• Safety Glass: Double-glazed toughened safety glass ensures durability and security, making the doors resistant to impact and break-ins.

Customization and Flexibility

• Configurations: The COR Vision sliding door system supports up to 6 sashes, with options for single, double, or triple tracks, allowing for versatile design solutions. This flexibility makes it suitable for large openings or multi-panel installations.
• Corner Options: The doors can be configured for 90° corner encounters without mullions, creating a seamless transition between spaces. This is perfect for homes with corner patio doors or unique architectural designs.
• Pocket System: Allows sashes to be fully hidden within the frame, providing a sleek and modern look. This feature maximizes the opening space and enhances the aesthetic appeal.
• Colour and Finish Options: Available in a wide range of finishes, including RAL powder coating, wood effect, anti-bacterial coating, and anodised finishes, to match any home’s aesthetic. The dual-colour system allows for different interior and exterior finishes.

Accessibility

• Invisible Track System: The rail can be integrated into the floor, providing a seamless threshold for wheelchair users and reducing tripping hazards. This feature enhances accessibility and safety.

Technical Specifications

Dimensions and Weight

• Maximum Dimensions: Each sash can be up to 2,500 mm in width and 3,000 mm in height, making it suitable for large openings.
• Maximum Weight: Supports sashes weighing up to 320 kg for manual operation.

Frame and Sash Sections

• Frame Section: Ranges from 116 mm to 182 mm for three-rail configurations.
• Sash Section: 37 mm thick, ensuring durability without compromising on aesthetics.

Profile and Insulation

• Profile Thickness: The door profile is 1.7 mm thick, providing strength and durability.

• Polyamide Strip Length: Ranges from 16 to 24 mm, enhancing thermal performance by reducing heat transfer.

Performance and Compliance

Air Permeability

• The doors meet the EN 12207 standard for air permeability, classified as Class 4, which indicates a high level of air tightness and energy efficiency.

Water Tightness

• Achieves a water tightness class of 7A, ensuring that the doors remain secure against rain and moisture.

Wind Resistance

• With a wind resistance class of C5, these doors are designed to withstand harsh weather conditions, providing stability and security.

Benefits for Residential Settings

Natural Light

The high glass-to-frame ratio and slim sightlines maximize natural light, creating a bright and inviting living space.

Space Optimization

The sliding mechanism and pocket system allow for a 100% opening surface, making them ideal for large openings and panoramic views.

Aesthetic Appeal

The minimalist design and customizable finishes make these doors a stylish addition to modern and traditional homes alike.

Installation and Maintenance

• Professional Installation: Recommended for proper alignment and functionality, ensuring smooth operation. Professional installation also ensures compliance with building regulations. Durajoin supply and install the doors, get in touch with us.
• Low Maintenance: The aluminium frames and integrated drainage system require minimal upkeep, making them a practical long-term investment.

Conclusion

The Cortizo COR Vision sliding doors combine cutting-edge design, superior performance, and customizable features, making them an excellent choice for homeowners seeking to enhance their living spaces. Whether you’re looking to maximize natural light, improve energy efficiency, or create a seamless indoor-outdoor transition, the COR Vision sliding system delivers on all fronts.
